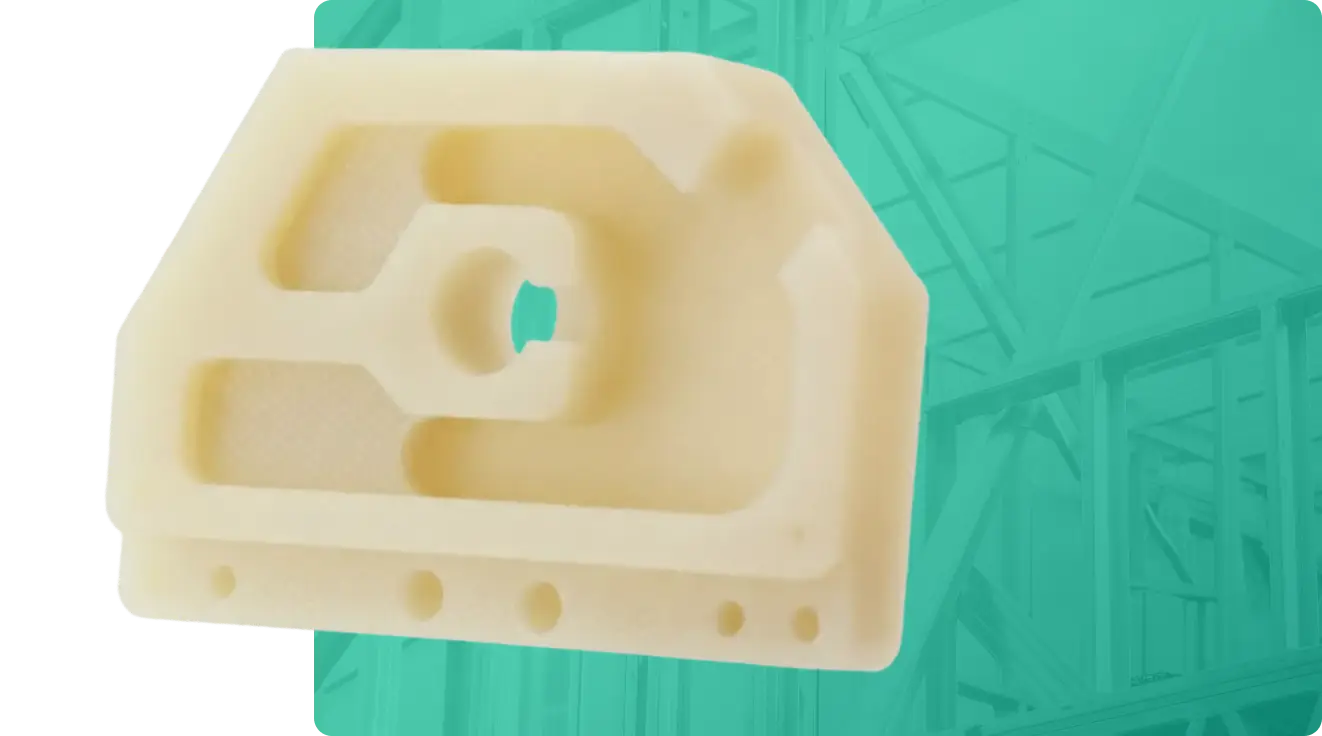

CNC Machined Garolite G-10 — High Strength Laminate for Electrical & Industrial Parts
Garolite G-10

At a glance

Processes

CNC Mill
CNC Lathe

Lead Time

As fast as 7 days

Colors

Green, yellow

Tolerance

With drawing: as low as +/- 0.005 mm
No drawing: ISO 2768 medium

Price

$$$

Applications

Circuit board substrates, jigs, fixtures, boating applications (as it does not absorb water)

About the Material

Garolite G-10 (also known as phenolic and epoxy-grade industrial laminate) is a composite material with a low coefficient of thermal expansion. Additionally, it does not absorb water and is an excellent insulator, which makes it really useful for electronics applications.

Insulation

Extreme Toughness Icon

Stability

Extreme Toughness Icon

Material Properties

Tensile Strength

35,000-50,000 PSI

Elongation at Break

Not rated

Hardness

Rockwell M110

Density

0.069 lbs / cubic in

Maximum Temperature

265° F

McMaster Part Number

8667k151

Material Finish

Garolite G-10 comes in a variety of mostly opaque colors (such as green and yellow, depending on availability). It is smooth and has a matte surface when machined. Additionally, Garolite G-10 can be machined to a variety of surface roughnesses.

Design Recommendations

Min Wall Thickness

1.0 mm

Min End Mill Size

0.8mm (0.03 in)

Min Drill Size

0.5 mm (0.02 in)

Max Part Size

1200 x 500 x 152 mm [x,y,z] (mill)
152 x 394 mm [d,h] (lathe)

Undercuts

Square profile, full radius, dovetail profiles

Radii : Depth

Depth must not exceed 12x drill bit diameter.
For end mills, depth must not exceed 10x tool diameter.
Cost Saving Tip

Cost Saving Tip

To reduce costs, limit the number of part setups, the number of inspection dimensions or tight tolerances, and deep pockets with small radii.
