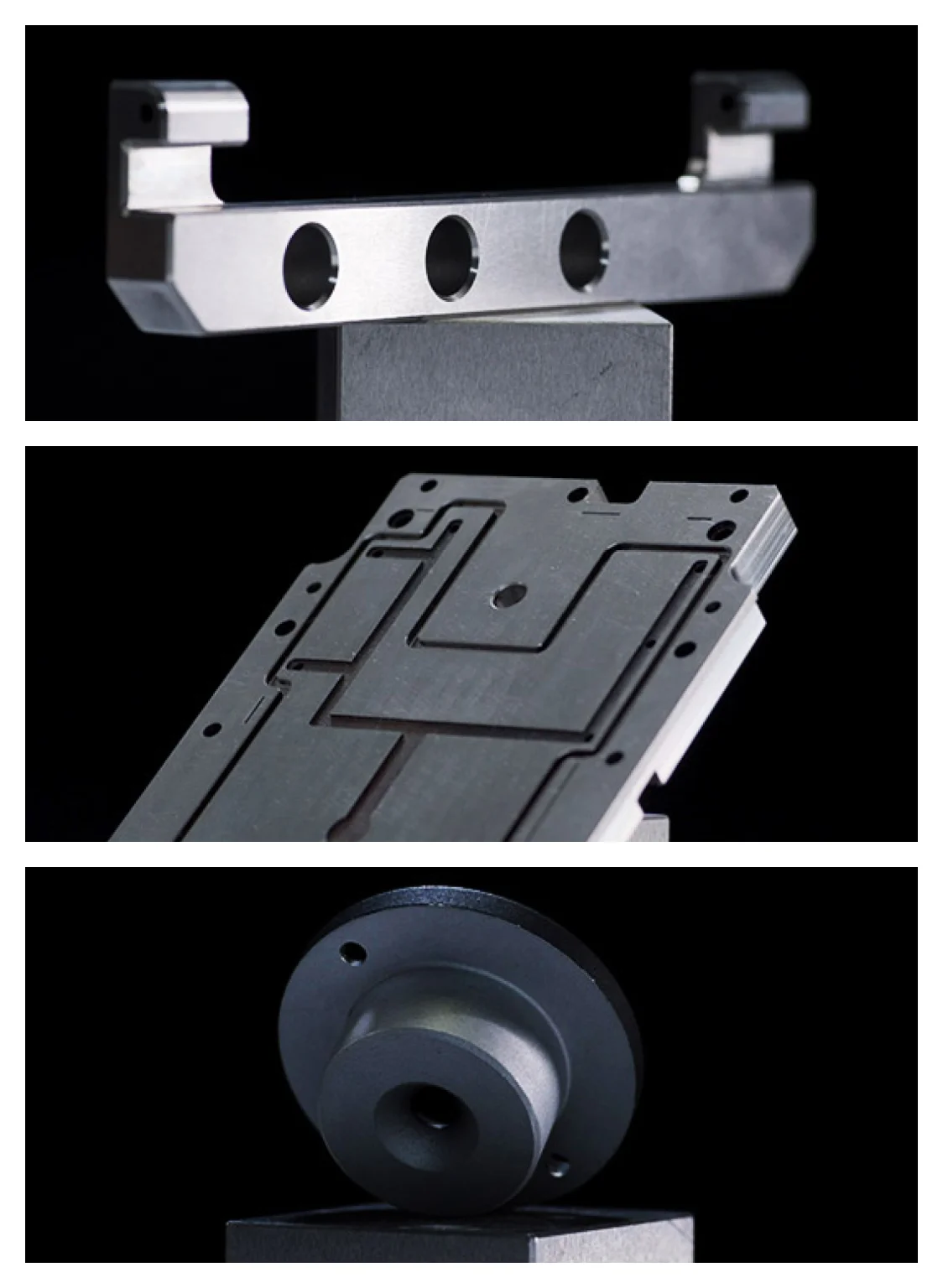

CNC Machining Services

Parts Time
Instant quotes & Dfm
Parts Time
Parts as Fast as 2 days
Parts Time
precision capabilities
Parts Time
hand metrology, Laser & cmm inspections
GET A QUOTE

Fictiv CNC machining advantages

CNC Machining processes

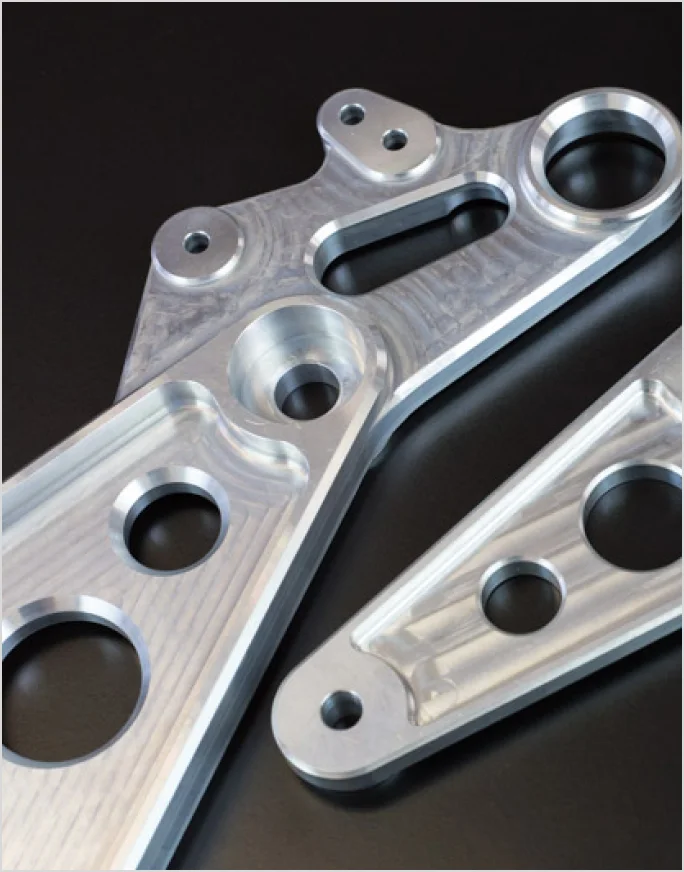

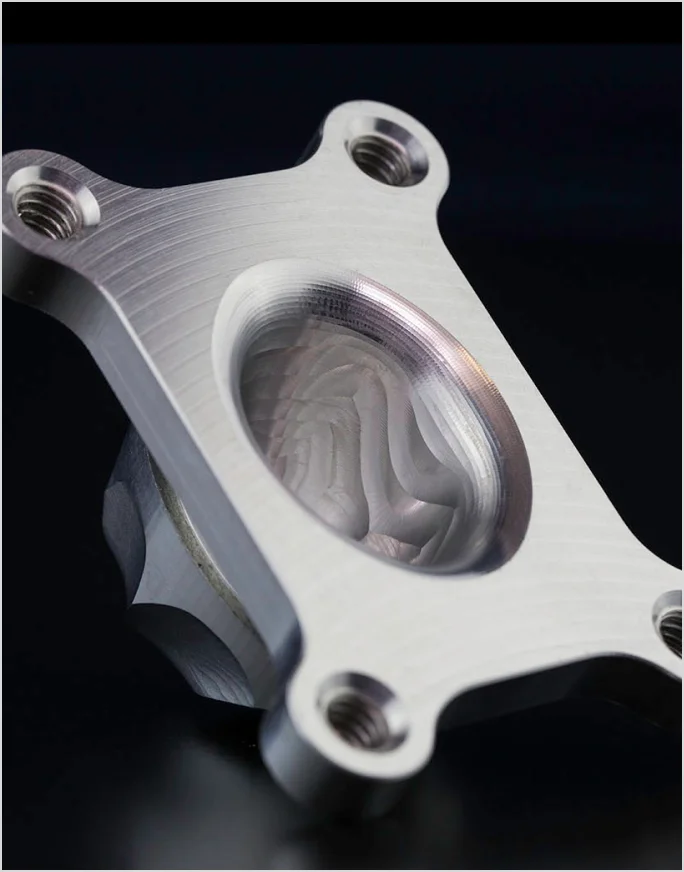

CNC Milling

CNC Milling

3, 4 and 5-axis machining capabilities for simple and complex geometries
Learn More
CNC Tubing

CNC Turning

Standard and live tooling capabilities for cylindrical parts such as pins, shafts, and spacers.
Learn More
Gear Hobbing

Gear Hobbing

A wide range of stock hobbing tools available for quick turnaround times. Custom hobbing also available.
Learn More
Electrical Discharge Machining

EDM

Useful for cutting deep pockets and complex features such as gears and holes with a keyway. Wire & sinker.
Learn More

CNC Materials

A2 Tool Steel

A2 Tool Steel has excellent wear resistance and toughness, commonly used to make fixtures, tools, tool holders, gauges, and punches.

Lead time: As fast as 7 days
Price: $$$
Finishing options: Media Blasting, Tumbling, Black Oxide

Learn more

A2 tool steel cnc material
ABS

ABS is a low-cost engineering plastic widely used for pre-injection molding prototypes.

Lead time: As fast as 2 days
Price: $
Colors: Black, Neutral

Learn more

abs plastic cnc material
Acrylic

Acrylic is a scratch-resistant plastic material, often used for tanks, panels, and optical applications.

Lead time: As fast as 2 days
Price: $
Colors: Optically clear, opaque

Learn more

Acrylic material
Aluminum

Aluminum is one of the most commonly used metals in the world because of its excellent strength-to-weight ratio, low cost, and recyclability.

Lead time: As fast as 2 days
Price: $$
Alloys: 6061-T6, 7075-T6, 7050, 2024, 5052, 6063, MIC6
Finishing Options: Alodine, Anodizing Types 2, 3, 3 + PTFE, ENP, Media Blasting, Nickel Plating, Powder Coating, Tumble Polishing

Learn more

CNC Aluminum Material
Brass

360 Brass, also known as free machining brass, is commonly used for a variety of parts including gears, lock components, pipe fittings, and ornamental applications.

Lead time: As fast as 2 days
Price: $$
Finishing options: Media blasting

Learn more

CNC Brass
Cast Iron

Cast iron is a dependable, wear-resistant material that's ideal for absorbing vibrations. Great for gears, bases, pulleys, and bushings.

Lead time: As fast as 7 days
Price: $$
Finishing options: Media Blasting, Tumbling

Learn more

Delrin Material
Copper

101 and 110 copper alloys offer excellent thermal and electrical conductivity, which makes them natural choices for bus bars, wire connectors, and other electrical applications.

Lead time: As fast as 2 days
Price: $$$
Alloys: 101, 110

Learn more

Copper Material
Delrin

Delrin, or acetal, is a low-friction, high-stiffness plastic material. With a relatively high toughness and minimal elongation, Delrin boasts excellent dimensional accuracy.

Lead time: As fast as 2 days
Price: $$
Grades: 150, AF (13% PTFE Filled), 30% Glass Filled
Colors: White, Black, Brown

Learn more

Delrin Material
Garolite G-10

Garolite G-10 (also known as phenolic and epoxy-grade industrial laminate) is a composite material with a low coefficient of thermal expansion. It does not absorb water and is an excellent insulator, making it useful for electronics applications.

Lead time: As fast as 7 days
Price: $$$
Colors: Green, Yellow

Learn more

garolite g-10 cnc material plastic
HDPE

High-density polyethylene (HDPE) is a slippery plastic that is often machined into plugs and seals. It is also an excellent electrical insulator as well as being moisture and chemically-resistant.

Lead time: As fast as 2 days
Price: $
Colors: White

Learn more

HDPE Material
Nylon

Nylon is a general purpose plastic material that resists both frictional and chemical wear. Two of the most notable use cases for Nylon are in medical devices and electronics insulation, notably screws and spacers for panel mounted circuit boards.

Lead time: As fast as 2 days
Price: $
Colors: Neutral

Learn more

Nylon Material
PEEK

In high-stress or high-temperature applications, PEEK is a great lightweight plastic substitute for most soft metals. Additionally, PEEK is resistant to moisture, wear, and chemicals.

Lead time: As fast as 2 days
Price: $$$
Grades: Standard PEEK, 30% Glass Filled
Colors: Opaque beige

Learn more

PEEK CNC material
Polycarbonate

Polycarbonate (PC), is heat-resistant, impact-resistant, flame-retardant, and one of the most common plastics used in manufacturing.

Lead time: As fast as 2 days
Price: $
Colors: Clear, Black

Learn more

Polycarbonate Material
Polypropylene

Polypropylene (PP) resists most solvents and chemicals, which makes it a wonderful material to manufacture laboratory equipment and containers for a variety of applications. PP also offers good fatigue strength.

Lead time: As fast as 2 days
Price: $
Colors: White

Learn more

Polypropylene CNC material
PPS

Polyphenylene Sulfide (PPS) is a high-performance engineering plastic with excellent temperature resistance, dimensional stability, and electrical insulation properties.

Lead time: As fast as 7 days
Price: $$$
Colors: Natural

Learn more

PPS plastic cnc material
PTFE (Teflon)

Commonly known as Teflon, PTFE resists high temperatures and chemicals/solvents excellently in and is also a great insulator. It is also a very slippery plastic, which makes it a good material for low-friction applications such as bearings.

Lead time: As fast as 2 days
Price: $
Colors: Black, White

Learn more

PTFE Material
Stainless Steel

Stainless steel is highly resistant to corrosion and rust, making it suitable for situations where a part may be exposed to the elements for long period of time. Stainless steel is also fairly malleable and ductile.

Lead time: As fast as 2 days
Price: $$$
Finishing options: Black Oxide, Electropolishing, ENP, Media Blasting, Nickel Plating, Passivation, Powder Coating, Tumble Polishing, Zinc Plating
Alloys: 303, 304L, 316L, 410, 416, 440C, 17-4PH, Nitronic 60

Learn more

Stainless Steel Material
Steel

Fictiv offers both alloy and carbon steel options, useful for a variety of applications including fixtures, mounting plates, draft shafts, axles, torsion bars, gears, bolts, studs, shafts, and structural applications.

Lead time: As fast as 2 days
Price: $$$
Alloys: 4140, 4130, A514, 4340
Carbon Steel Types: 1018 Low Carbon, 1045 Carbon, Zinc-Galvanized Low-Carbon,
Finishing Options: Black Oxide, ENP, Electropolishing, Media Blasting, Nickel Plating, Powder Coating, Tumble Polishing, Zinc Plating

Learn more

Steel Material
Titanium

Titanium may be selected over other materials such as steel due to its ability to withstand high and subzero temperatures. Common use cases include aerospace fasteners, turbine blades, engine components, sports equipment and marine applications.

Lead time: As fast as 7 days
Price: $$$
Grade: Titanium Grade 5
Finishing Options: Media Blasting, Tumbling, Passivation

Learn more

titanium cnc material
UHMW

Ultra-High-Molecular-Weight Polyethylene (or UHMW) is a hard plastic with a slippery surface, which resists abrasion and wear. Additionally, it offers high impact strength and is the optimal material for chute/hopper liners and machine guards.

Lead time: As fast as 2 days
Price: $
Colors: Black, White

Learn more

UHMW CNC Material
Ultem

ULTEM 1000 is a translucent amber colored plastic with excellent durability, strength, stiffness and heat resistance. ULTEM 1000 may be selected over Nylon or Delrin because it has the highest dielectric properties. Common applications include industrial equipment, medical devices and electronics.

Lead time: As fast as 7 days
Price: $$$
Colors: Amber

Learn more

A2 tool steel cnc material
Download Material Datasheet
Download icon
Download CNC Material Datasheet

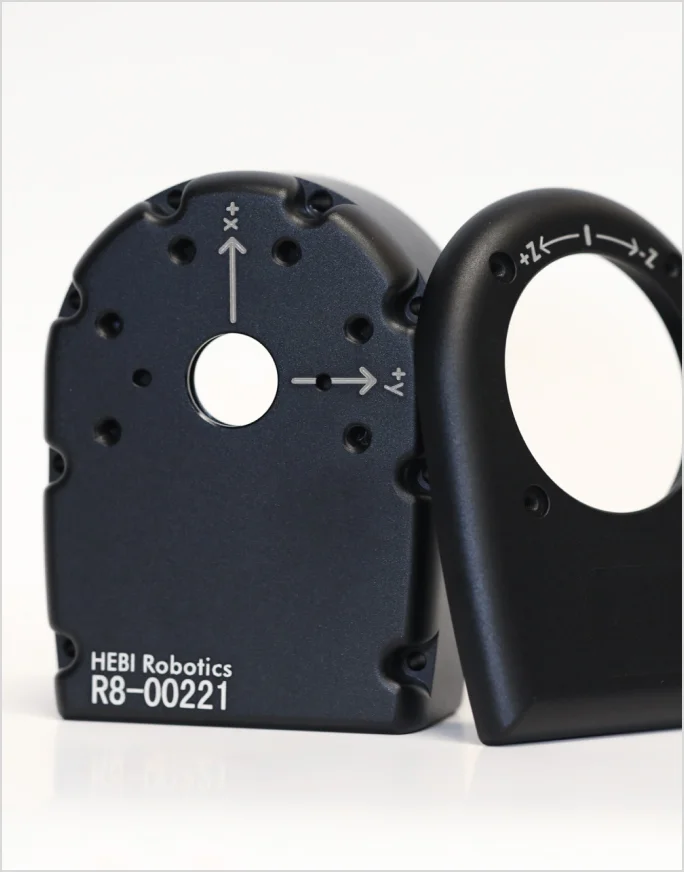

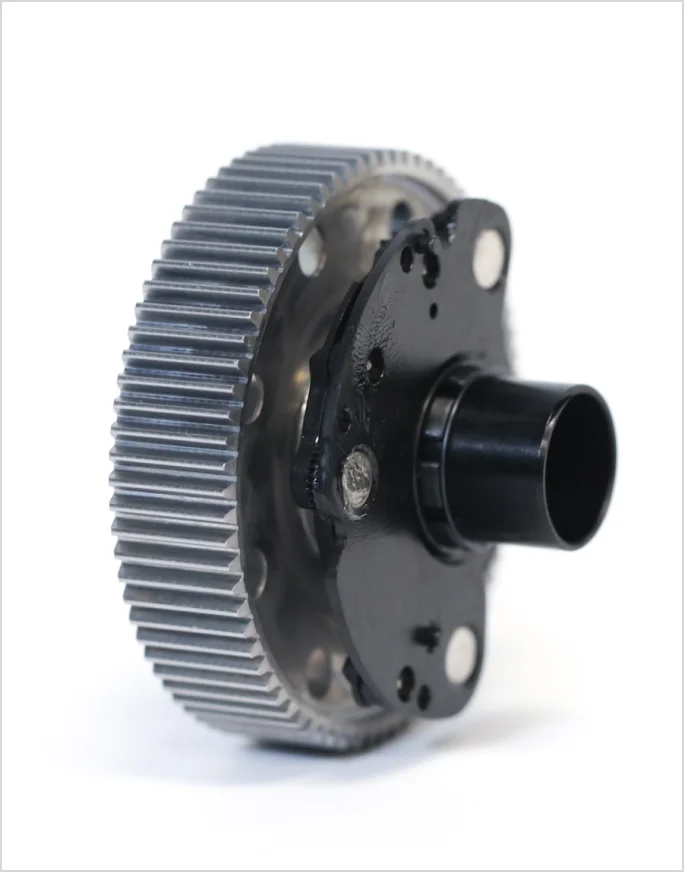

gear hobbing cnc machined gearprecision cnc machined parthebi robotics cnc part
hebi robotics logo
cnc customer case study
“Being able to use Fictiv for gears is very exciting. We know they're going to hit their lead times and we're going to be in constant communication to see where our parts are in the supply chain.”
—Andrew Willig, Mechanical Engineer, HEBI Robotics
Parts Made
+/- 0.0004" tolerances
Parts Time
6 weeks for 650 gears

CNC Surface Finishing Options

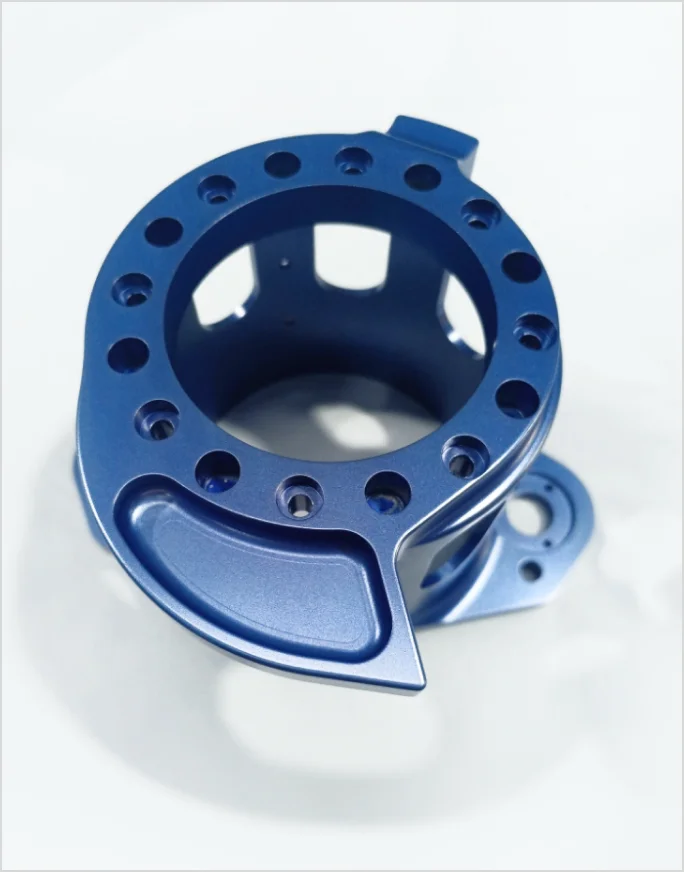

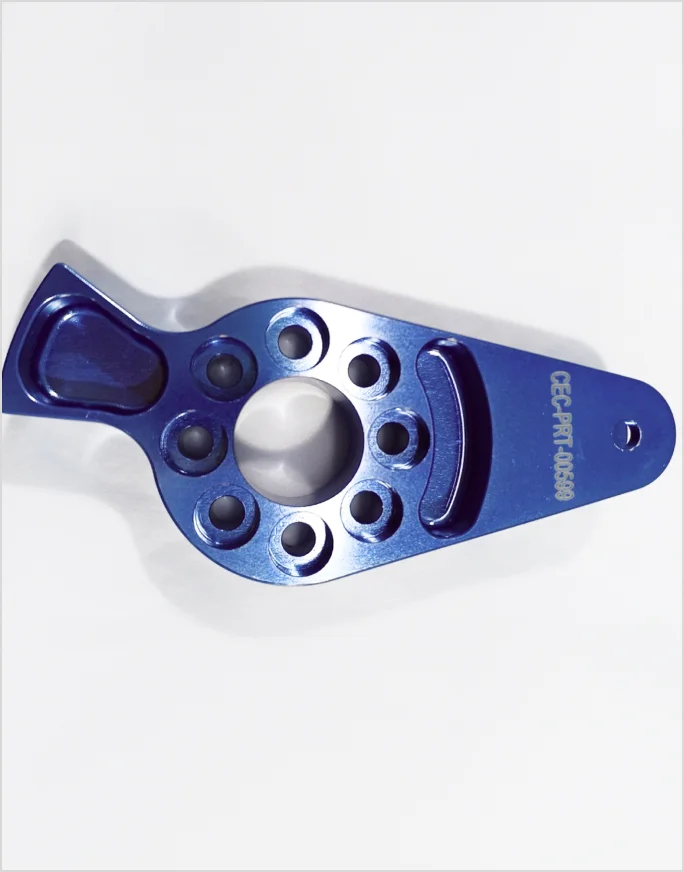

Anodizing

Anodizing is an electrolytic passivation process that grows the natural oxide layer on aluminum parts for protection from wear and corrosion, as well as for cosmetic effects.

Colors: Clear, black, grey, red, blue, gold
Types: Type 2, Type 3, Type 3 + PTFE
Texture: Smooth, matte finish. Does not cover machine marks unless media blasted beforehand.
Applicable materials: Aluminum
Thickness: 1.8 μm to 25 μm (0.00007")
Lead time: As fast as 2 days (Type 2) and 7 days (Type 3)

Learn more

gold anodized cnc part
Alodine

Chromate conversion coating, more commonly known by its brand name Alodine, is a chemical coating that passivate and protects aluminum from corrosion. It is also used as a base layer before priming and painting parts.

Colors: Clear, Gold
Applicable Materials: Aluminum
Thickness: 0.25-1.0 µm; 0.00001-0.00004 inches
Lead time: As fast as 2 days

Learn more

gold alodine chromate conversion coating cnc part
Black Oxide

Black oxide is a conversion coating similar to Alodine that is used for steel and stainless steel. It is used mainly for appearance and for mild corrosion resistance.

Colors: Black
Texture: Smooth, matte black
Applicable materials: Steel, Stainless Steel
Can be applied with: Media Blasting, Tumbling, Passivation
Lead time: As fast as 7 days

Learn more

black oxide cnc finishing
Electropolishing

Electropolishing is an electrochemical process used to improve the surface finish of a part by removing material to level microscopic peaks and valleys.

Texture: Smooth, glossy finish
Applicable materials: Stainless Steel, Steel
Can be applied with: Passivation, Tumbling
Lead time: As fast as 3 days

Learn more

electropolishing cnc surface finish stainless steel
Electroless Nickel Plating

Electroless nickel plating (ENP) is a reaction that deposits a nickel-phosphorus alloy onto the surface of a metal. Compared to electroplating, it has more uniform thickness and superior wear and corrosion resistance.

Texture: Smooth, glossy finish
Applicable materials: Aluminum, Steel, Stainless Steel
Can be applied with: Alodine
Lead time: As fast as 5 days

Learn more

electroless nickel plating cnc surface finish
Media Blasting

Media blasting uses a pressurized jet of abrasive media to apply a matte, uniform finish to the surface of parts.

Texture: Matte
Applicable materials: All metals
Lead time: As fast as 1 day

Learn more

media blasting cnc surface finish
Nickel Plating

Nickel plating is a process used to electroplate a thin layer of nickel onto a metal part. This plating can be used for corrosion and wear resistance, as well as for decorative purposes.

Texture: Smooth finish
Applicable materials: Aluminum, Steel, Stainless Steel
Can be applied with: Media Blasting,Tumbling
Lead time: As fast as 5 days

Learn more

nickel plating cnc surface finish
Passivation

Passivation is a chemical reaction that causes a material to be less affected by corrosion or other environmental factors.

Texture: Smooth, glossy finish
Applicable materials: Steel, Stainless Steel, Titanium
Can be applied with: Black Oxide, Electroless Nickel Plating, Electropolish, Zinc Plating, Tumbling, Media Blasting
Lead time: As fast as 2 days

Learn more

Passivation cnc surface finish
Powder Coating

Powder coating is a process in which a dry powder paint is applied to a metal surface. Unlike traditional, liquid paint, powder coating does not need a solvent to keep the binder and filler of the paint in liquid suspension.

Colors: Black, White
Texture: Gloss (90%) or Semi-Gloss (20%)
Applicable materials: Aluminum, Stainless Steel, Steel
Texture: Gloss (90%) or Semi-Gloss (20%)
Lead time: As fast as 4 days

Learn more

powder coating cnc surface finish
Tumbling

Tumbling is a finishing process that is used to clean, deburr, and slightly smooth smaller parts.

Texture: Slightly rounded edges, smooth, slightly matte finish, does not hide all machine marks
Applicable materials: Aluminum, Steel, Stainless Steel, Titanium
Can be applied with: Any finish
Lead time: As fast as 2 days

Learn more

tumbling cnc surface finish
Zinc Plating

Zinc plating, which is also known as galvanization, is applied to prevent the surface from oxidizing or corroding.

Colors: Clear, light blue coating or glossy black coating
Texture: Smooth finish, does not hide machine marks
Applicable materials: Steel, Stainless Steel
Can be applied with: Media Blasting, Tumbling, Passivation
Lead time: As fast as 3 days

Learn more

zinc plating cnc surface finish
Download Material Datasheet
Download icon
Download CNC Finishing Guide

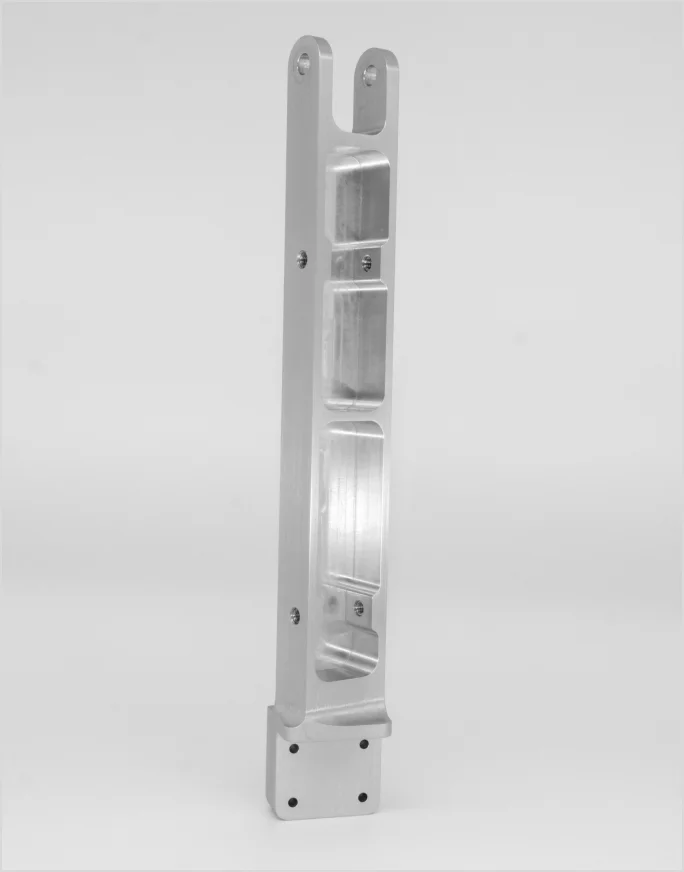

Custom CNC Machining Applications

FROM PROTOTYPE TO PRODUCTION

Mid Stage Prototypes
CNC machining is an ideal process for mid-stage functional prototypes. Fictiv can help you accelerate development cycles with instant quotes, intelligent DFM feedback, and rapid lead times.
  • Finishing, masking & hardware installation
  • Milling, turning, gear hobbing, EDM
  • Tolerances as tight as +/- 0.0002"
Production Parts
CNC machining is often leveraged for end-use production grade parts. Fictiv's global manufacturing network is optimized for production machining, with volumes up to 1M units.
  • Inspections using CMM or laser scanners
  • Material certification available
  • ISO 9001 certified, AS 9100 / ISO 13485 compliant
Production Tooling
CNC machining is ideal for manufacturing components needed for production, including fixtures, jigs, gauges, molds, dies, cutting equipment, and patterns.
  • Vetted partners in the U.S. and overseas
  • Economical pricing options
  • 2D drawings accepted

Precision CNC Machining Tolerances

With a drawing, Fictiv can produce parts with tolerance as low as +/- 0.0002 in. Without a drawing, all parts are produced to our ISO 2768 medium standard.

Select a feature
Circular Runout
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0500
0.0060
>1~3
0.0500
0.0060
>3~6
0.0500
0.008
>6~10
0.0500
0.0100
>10~18
0.0500
0.0120
>18~30
0.0500
0.0150
>30~50
0.1000
0.0200
>50~120
0.1500
0.0250
>120~250
0.2000
0.0300
>250~500
0.2500
0.0400
>500~800
0.3000
0.0500
>800~1250
0.3500
0.0600
>1250~2000
0.4000
0.0800
>2000~3150
0.5000
0.1000
>3150~5000
1.0000
0.1200
>5000~8000
1.5000
0.1500
>8000~10000
2.0000
0.2000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0020
0.0002
>1~3
0.0020
0.0002
>3~6
0.0020
0.0003
>6~10
0.0020
0.0004
>10~18
0.0020
0.0005
>18~30
0.0020
0.0006
>30~50
0.0039
0.0008
>50~120
0.0059
0.0010
>120~250
0.0079
0.0012
>250~500
0.0098
0.0016
>500~800
0.0118
0.0020
>800~1250
0.0138
0.0024
>1250~2000
0.0157
0.0031
>2000~3150
0.0197
0.0039
>3150~5000
0.0394
0.0047
>5000~8000
0.0591
0.0059
>8000~10000
0.0787
0.0079
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Straightness
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0500
0.0080
>10~16
0.0500
0.0100
>16~25
0.0500
0.0120
>25~40
0.0500
0.0150
>40~63
0.0500
0.0200
>63~100
0.0500
0.0250
>100~160
0.1000
0.0300
>160~250
0.1500
0.0400
>250~400
0.2000
0.0500
>400~630
0.2500
0.0600
>630~1000
0.3000
0.0800
>1000~1600
0.3500
0.1000
>1600~2500
0.4000
0.1200
>2500~4000
0.4500
0.1500
>4000~6300
0.5000
0.2000
>6300~10000
1.0000
0.2500
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0020
0.0003
>10~16
0.0020
0.0004
>16~25
0.0020
0.0005
>25~40
0.0020
0.0006
>40~63
0.0020
0.0008
>63~100
0.0020
0.0010
>100~160
0.0039
0.0012
>160~250
0.0059
0.0016
>250~400
0.0079
0.0020
>400~630
0.0098
0.0024
>630~1000
0.0118
0.0031
>1000~1600
0.0138
0.0039
>1600~2500
0.0157
0.0047
>2500~4000
0.0177
0.0059
>4000~6300
0.0197
0.0079
>6300~10000
0.0394
0.0098
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Flatness
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0500
0.0080
>10~16
0.0500
0.0100
>16~25
0.0500
0.0120
>25~40
0.0500
0.0150
>40~63
0.0500
0.0200
>63~100
0.0500
0.0250
>100~160
0.1000
0.0300
>160~250
0.1500
0.0400
>250~400
0.2000
0.0500
>400~630
0.2500
0.0600
>630~1000
0.3000
0.0800
>1000~1600
0.3500
0.1000
>1600~2500
0.4000
0.1200
>2500~4000
0.4500
0.1500
>4000~6300
0.5000
0.2000
>6300~10000
1.0000
0.2500
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0020
0.0003
>10~16
0.0020
0.0004
>16~25
0.0020
0.0005
>25~40
0.0020
0.0006
>40~63
0.0020
0.0008
>63~100
0.0020
0.0010
>100~160
0.0039
0.0012
>160~250
0.0059
0.0016
>250~400
0.0079
0.0020
>400~630
0.0098
0.0024
>630~1000
0.0118
0.0031
>1000~1600
0.0138
0.0039
>1600~2500
0.0157
0.0047
>2500~4000
0.0177
0.0059
>4000~6300
0.0197
0.0079
>6300~10000
0.0394
0.0098
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Parallelism
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0500
0.0200
>10~16
0.0500
0.0250
>16~25
0.0500
0.0300
>25~40
0.0500
0.0400
>40~63
0.0500
0.0400
>63~100
0.0500
0.0600
>100~160
0.1000
0.0800
>160~250
0.1500
0.1000
>250~400
0.2000
0.1200
>400~630
0.2500
0.1500
>630~1000
0.3000
0.2000
>1000~1600
0.3500
0.2500
>1600~2500
0.4000
0.3000
>2500~4000
0.4500
0.4000
>4000~6300
0.5000
0.5000
>6300~10000
1.0000
0.6000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0020
0.0008
>10~16
0.0020
0.0010
>16~25
0.0020
0.0012
>25~40
0.0020
0.0016
>40~63
0.0020
0.0020
>63~100
0.0020
0.0024
>100~160
0.0039
0.0031
>160~250
0.0059
0.0039
>250~400
0.0079
0.0047
>400~630
0.0098
0.0059
>630~1000
0.0118
0.0079
>1000~1600
0.0138
0.0098
>1600~2500
0.0157
0.0118
>2500~4000
0.0177
0.0157
>4000~6300
0.0197
0.0197
>6300~10000
0.0394
0.0236
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Perpendicularity
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0500
0.0200
>10~16
0.0500
0.0250
>16~25
0.0500
0.0300
>25~40
0.0500
0.0400
>40~63
0.0500
0.0400
>63~100
0.0500
0.0600
>100~160
0.1000
0.0800
>160~250
0.1500
0.1000
>250~400
0.2000
0.1200
>400~630
0.2500
0.1500
>630~1000
0.3000
0.2000
>1000~1600
0.3500
0.2500
>1600~2500
0.4000
0.3000
>2500~4000
0.4500
0.4000
>4000~6300
0.5000
0.5000
>6300~10000
1.0000
0.6000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0020
0.0008
>10~16
0.0020
0.0010
>16~25
0.0020
0.0012
>25~40
0.0020
0.0016
>40~63
0.0020
0.0020
>63~100
0.0020
0.0024
>100~160
0.0039
0.0031
>160~250
0.0059
0.0039
>250~400
0.0079
0.0047
>400~630
0.0098
0.0059
>630~1000
0.0118
0.0079
>1000~1600
0.0138
0.0098
>1600~2500
0.0157
0.0118
>2500~4000
0.0177
0.0157
>4000~6300
0.0197
0.0197
>6300~10000
0.0394
0.0236
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Angularity
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0500
0.0200
>10~16
0.0500
0.0250
>16~25
0.0500
0.0300
>25~40
0.0500
0.0400
>40~63
0.0500
0.0400
>63~100
0.0500
0.0600
>100~160
0.1000
0.0800
>160~250
0.1500
0.1000
>250~400
0.2000
0.1200
>400~630
0.2500
0.1500
>630~1000
0.3000
0.2000
>1000~1600
0.3500
0.2500
>1600~2500
0.4000
0.3000
>2500~4000
0.4500
0.4000
>4000~6300
0.5000
0.5000
>6300~10000
1.0000
0.6000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤10
0.0020
0.0008
>10~16
0.0020
0.0010
>16~25
0.0020
0.0012
>25~40
0.0020
0.0016
>40~63
0.0020
0.0020
>63~100
0.0020
0.0024
>100~160
0.0039
0.0031
>160~250
0.0059
0.0039
>250~400
0.0079
0.0047
>400~630
0.0098
0.0059
>630~1000
0.0118
0.0079
>1000~1600
0.0138
0.0098
>1600~2500
0.0157
0.0118
>2500~4000
0.0177
0.0157
>4000~6300
0.0197
0.0197
>6300~10000
0.0394
0.0236
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Circularity
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤3
0.0500
0.0200
>3~6
0.0500
0.0250
>6~10
0.0500
0.0300
>10~18
0.0500
0.0400
>18~30
0.0500
0.0400
>30~50
0.0500
0.0600
>50~80
0.1000
0.0800
>80~120
0.1500
0.1000
>120~180
0.2000
0.1200
>180~250
0.2500
0.1500
>250~315
0.3000
0.2000
>315~400
0.3500
0.2500
>400~500
0.4000
0.3000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤3
0.0020
0.0008
>3~6
0.0020
0.0002
>6~10
0.0020
0.0002
>10~18
0.0020
0.0003
>18~30
0.0020
0.0004
>30~50
0.0020
0.0004
>50~80
0.0039
0.0005
>80~120
0.0059
0.0006
>120~180
0.0079
0.0007
>180~250
0.0098
0.0008
>250~315
0.0118
0.0009
>315~400
0.0138
0.0010
>400~500
0.0197
0.0011
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Cylindricity
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤3
0.0500
0.0040
>3~6
0.0500
0.0050
>6~10
0.0500
0.0060
>10~18
0.0500
0.0080
>18~30
0.0500
0.0090
>30~50
0.0500
0.0110
>50~80
0.1000
0.0130
>80~120
0.1500
0.0150
>120~180
0.2000
0.0180
>180~250
0.2500
0.0200
>250~315
0.3000
0.0230
>315~400
0.3500
0.0250
>400~500
0.5000
0.0270
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤3
0.0020
0.0002
>3~6
0.0020
0.0002
>6~10
0.0020
0.0002
>10~18
0.0020
0.0003
>18~30
0.0020
0.0004
>30~50
0.0020
0.0004
>50~80
0.0039
0.0005
>80~120
0.0059
0.0006
>120~180
0.0079
0.0007
>180~250
0.0098
0.0008
>250~315
0.0118
0.0009
>315~400
0.0138
0.0010
>400~500
0.0197
0.0011
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Concentricity
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0500
0.0040
>1~3
0.0500
0.0050
>3~6
0.0500
0.0060
>6~10
0.0500
0.0080
>10~18
0.0500
0.0090
>18~30
0.0500
0.0110
>30~50
0.1000
0.0130
>50~120
0.1500
0.0150
>120~250
0.2000
0.0180
>250~500
0.2500
0.0200
>500~800
0.3000
0.0500
>800~1250
0.3500
0.0600
>1250~2000
0.4000
0.0800
>2000~3150
0.5000
0.1000
>3150~5000
1.0000
0.1200
>5000~8000
1.5000
0.1500
>8000~10000
2.0000
0.2000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0020
0.0002
>1~3
0.0020
0.0002
>3~6
0.0020
0.0003
>6~10
0.0020
0.0004
>10~18
0.0020
0.0005
>18~30
0.0020
0.0006
>30~50
0.0039
0.0007
>50~120
0.0059
0.0010
>120~250
0.0079
0.0012
>250~500
0.0098
0.0016
>500~800
0.0118
0.0020
>800~1250
0.0138
0.0024
>1250~2000
0.0157
0.0031
>2000~3150
0.0197
0.0039
>3150~5000
0.0394
0.0047
>5000~8000
0.0591
0.0059
>8000~10000
0.0797
0.0079
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Symmetry
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0500
0.0060
>1~3
0.0500
0.0060
>3~6
0.0500
0.0080
>6~10
0.0500
0.0100
>10~18
0.0500
0.0120
>18~30
0.0500
0.0150
>30~50
0.1000
0.0200
>50~120
0.1500
0.0250
>120~250
0.2000
0.0300
>250~500
0.2500
0.0400
>500~800
0.3000
0.0500
>800~1250
0.3500
0.0600
>1250~2000
0.4000
0.0800
>2000~3150
0.5000
0.1000
>3150~5000
1.0000
0.1200
>5000~8000
1.5000
0.1500
>8000~10000
2.0000
0.2000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0020
0.0002
>1~3
0.0020
0.0002
>3~6
0.0020
0.0003
>6~10
0.0020
0.0004
>10~18
0.0020
0.0005
>18~30
0.0020
0.0006
>30~50
0.0039
0.0007
>50~120
0.0059
0.0010
>120~250
0.0079
0.0012
>250~500
0.0098
0.0016
>500~800
0.0118
0.0020
>800~1250
0.0138
0.0024
>1250~2000
0.0157
0.0031
>2000~3150
0.0197
0.0039
>3150~5000
0.0394
0.0047
>5000~8000
0.0591
0.0059
>8000~10000
0.0787
0.0079
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Total Runout
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0500
0.0060
>1~3
0.0500
0.0060
>3~6
0.0500
0.0080
>6~10
0.0500
0.0100
>10~18
0.0500
0.0120
>18~30
0.0500
0.0150
>30~50
0.1000
0.0200
>50~120
0.1500
0.0250
>120~250
0.2000
0.0300
>250~500
0.2500
0.0400
>500~800
0.3000
0.0500
>800~1250
0.3500
0.0600
>1250~2000
0.4000
0.0800
>2000~3150
0.5000
0.1000
>3150~5000
1.0000
0.1200
>5000~8000
1.5000
0.1500
>8000~10000
2.0000
0.2000
Linear Dimensions
US
CHINA
+/- 0.025
+/- 0.01
Hole Diameters [Not reamed]
US
CHINA
+/- 0.025
+/- 0.008
Shaft Diameters
US
CHINA
+/- 0.025
+/- 0.004
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
950 X 550 X 480
DIMENSION RANGE
US TOLERANCE
China Tolerance
≤1
0.0020
0.0002
>1~3
0.0020
0.0002
>3~6
0.0020
0.0003
>6~10
0.0020
0.0004
>10~18
0.0020
0.0005
>18~30
0.0020
0.0006
>30~50
0.0039
0.0007
>50~120
0.0059
0.0010
>120~250
0.0079
0.0012
>250~500
0.0098
0.0016
>500~800
0.0118
0.0020
>800~1250
0.0138
0.0024
>1250~2000
0.0157
0.0031
>2000~3150
0.0197
0.0039
>3150~5000
0.0394
0.0047
>5000~8000
0.0591
0.0059
>8000~10000
0.0787
0.0079
Linear Dimensions
US
CHINA
+/- 0.001''
+/- 0.0004''
Hole Diameters [Not reamed]
US
CHINA
+/- 0.001''
+/- 0.0003''
Shaft Diameters
US
CHINA
+/- 0.001''
+/- 0.00016''
Smallest Thread Size Available
US
CHINA
M1x0.25
M1.6x0.35
Part Size Limit (mm)
37.0'' X 21.5'' X 18.5''
Download icon
Download full tolerance chart
Our Quality Promise
Inspection reports included with every order
All parts inspected using hand metrology, CMM or laser scanners
All manufacturing partners are highly vetted and managed
ISO 9001 certified, AS 9100 & ISO 13485 compliant
Quality guaranteed. If a part is not made to spec, we'll make it right.
Material certifications available

Technology overview: What is CNC Machining?

About the CNC Process

CNC, or computer numerical control machining, is a subtractive manufacturing method that leverages a combination of computerized controls and machine tools to remove layers from a solid block of material. The desired cuts in the metal are programmed according to corresponding tools and machinery, which perform the machining task in an automated fashion.

Types of CNC Machining

Depending on the type of part that needs to be machined, there are different types of CNC machines best fit for the job. CNC mills consist of a multi-axis system (three, four, or five axes, depending on the part complexity). Lathe machines generally have 2 axes and cut pieces using a circular motion. Electric discharge machines (EDM) utilize electrical sparks into order to mold work pieces into the desired shape. Hobbing is another type of machining process used for cutting gears, splines, and sprockets. Additional machining types include plasma cutters and water jet cutters.

CNC vs 3D Printing

Compared with parts manufacturing through additive methods, CNC machined parts are functionally stronger and typically have superior production quality and finish. Thus, CNC machining is typically used in the mid to late stages of development when parts are ready to be tested for functional accuracy.

CNC Design Considerations

While most of the details, such as tooling, spindle speed, cutter type, and depth of cut, and taken care of at the machine shop, there are some key things you can do while designing your parts to not only make sure they can be made, but also ensure you develop a lean product that doesn't break the bank. For an in-depth overview of key CNC design considerations, read our free CNC Design Guide.

CNC Machining Resources

Design Guide
CNC Design Guide

Industry best practices including: threaded holes, corner design, feature symmetry, advanced tips

Free Download
Hardware Guide
How to Cut CNC Machining Costs

Learn about the key factors in part design that drive costs for CNC machining and keep your budget on track.

Keep Reading
