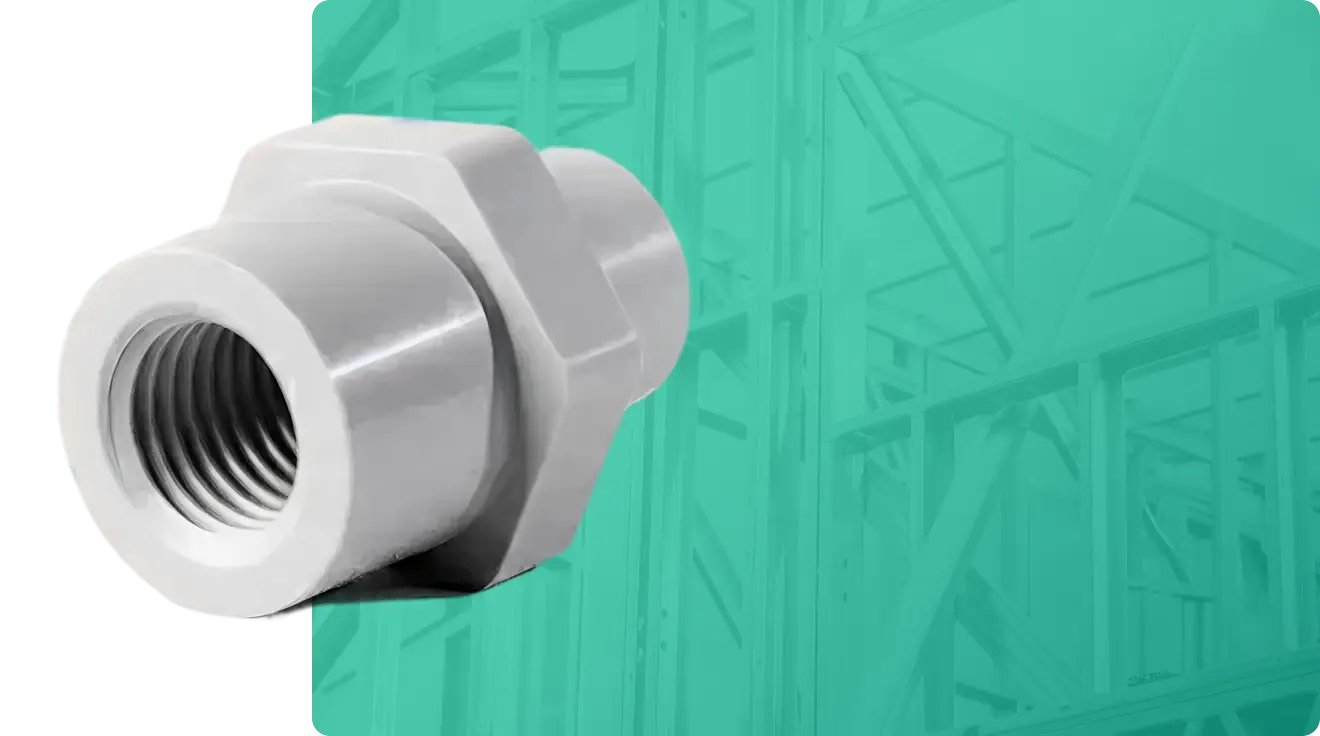

PVC

At a glance

Processes

CNC Mill
CNC Lathe

Lead Time

As fast as 5 days

Finishing Options

Available as-machined

Tolerance

With drawing: as low as +/- 0.005 mm
No drawing: ISO 2768 medium

About the Material

Chemical-Resistant PVC (Polyvinyl Chloride) is a great choice for designs requiring electrical insulation. Chemical-Resistant PVC also offers terrific resistance to alkalies and acids, which makes it the ideal choice for applications related to chemical-processing and tank/valve components.

Material Properties

Chemical-Resistant PVC

Yield Strength (tensile)

7,000 PSI

Elongation at Break

Hardness

Rockwell R110-R120

Density

1.38 g/cm^3
0.05lb / in^3

Material Finish

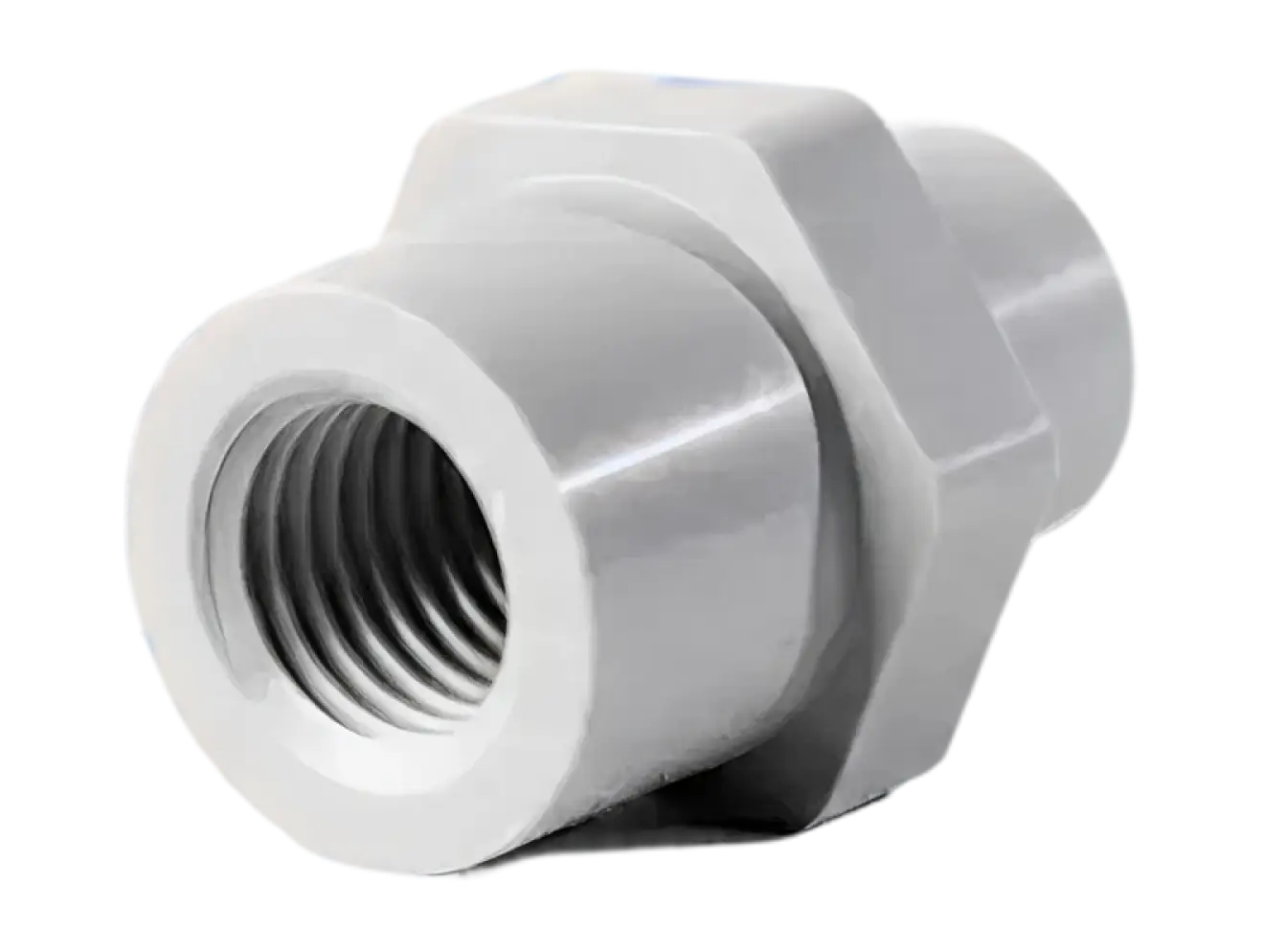

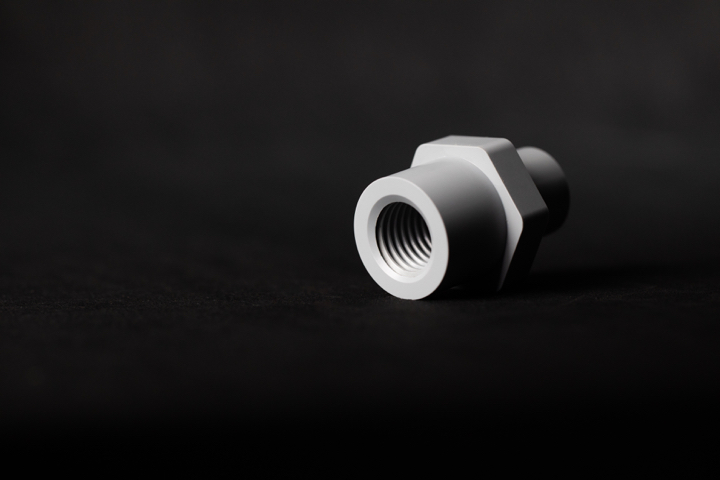

PVC has an opaque, gray finish when machined. It has a smooth, matte appearance post machining and can be machined to a variety of surface roughnesses.

Design Recommendations

Min Wall Thickness

0.5 mm (0.02 in)

Min End Mill Size

0.8 mm (0.03 in)

Min Drill Size

0.5 mm (0.02 in)

Max Part Size

1200 x 500 x 152 mm [x,y,z] (mill) 152 x 394 mm [d,h] (lathe)

Undercuts

Square profile, full radius, dovetail profiles

Radii : Depth

Depth must not exceed 12x drill bit diameter. For end mills, depth must not exceed 10x tool diameter.

Cost Saving Tip

To reduce costs, limit the number of part setups, the number of inspection dimensions or tight tolerances, and deep pockets with small radii.
