CNC Machining Materials

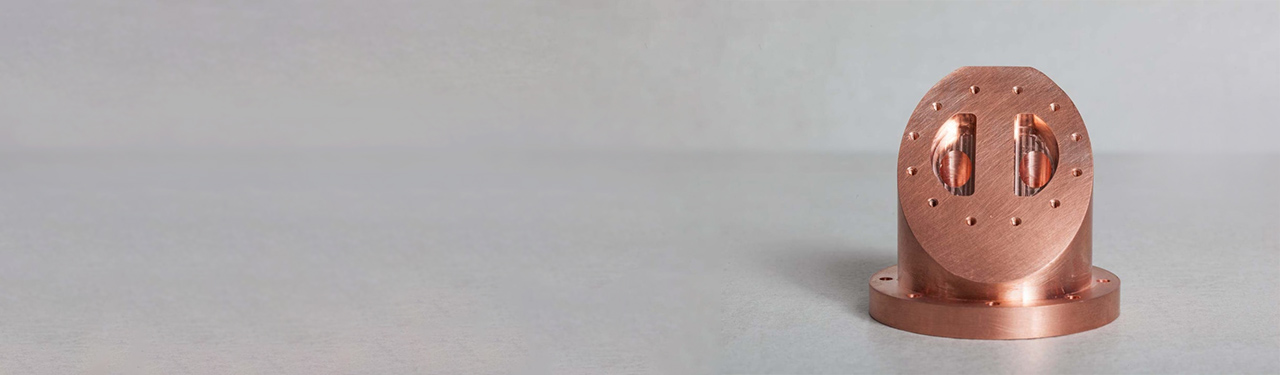

Copper

At a glance

Processes

CNC Mill
CNC Lathe

Lead Time

3 days (rush)
5-7 days (standard)

Finishing Options

Available as-machined, media blasted, or hand-polished

Tolerance

ISO 2768

Price

$$$

Applications

Bus bars, gaskets, wire connectors, and other electrical applications

Alloys

101, 110

About the material

101 and 110 copper alloys offer excellent thermal and electrical conductivity, which make them natural choices for bus bars, wire connectors, and other electrical applications. While 101 (also known as super-conductive copper) offers higher conductivity due to its purity (99.99% copper), 110 is generally easier to machine and thus more cost-effective.

Material Properties

110 Copper

Tensile Strength

42,000 psi (1/2 hard)

Elongation at Break

20%

Hardness

Rockwell F40

Density

0.322 lbs / cu. in.

Maximum Temp

500° F

McMaster Part Number

8963KK149

101 Copper

Tensile Strength

37,000 psi (1/2 hard)

Elongation at Break

14%

Hardness

Rockwell F60

Density

0.323 lbs / cu. in.

Maximum Temp

500° F

McMaster Part Number

2554T511

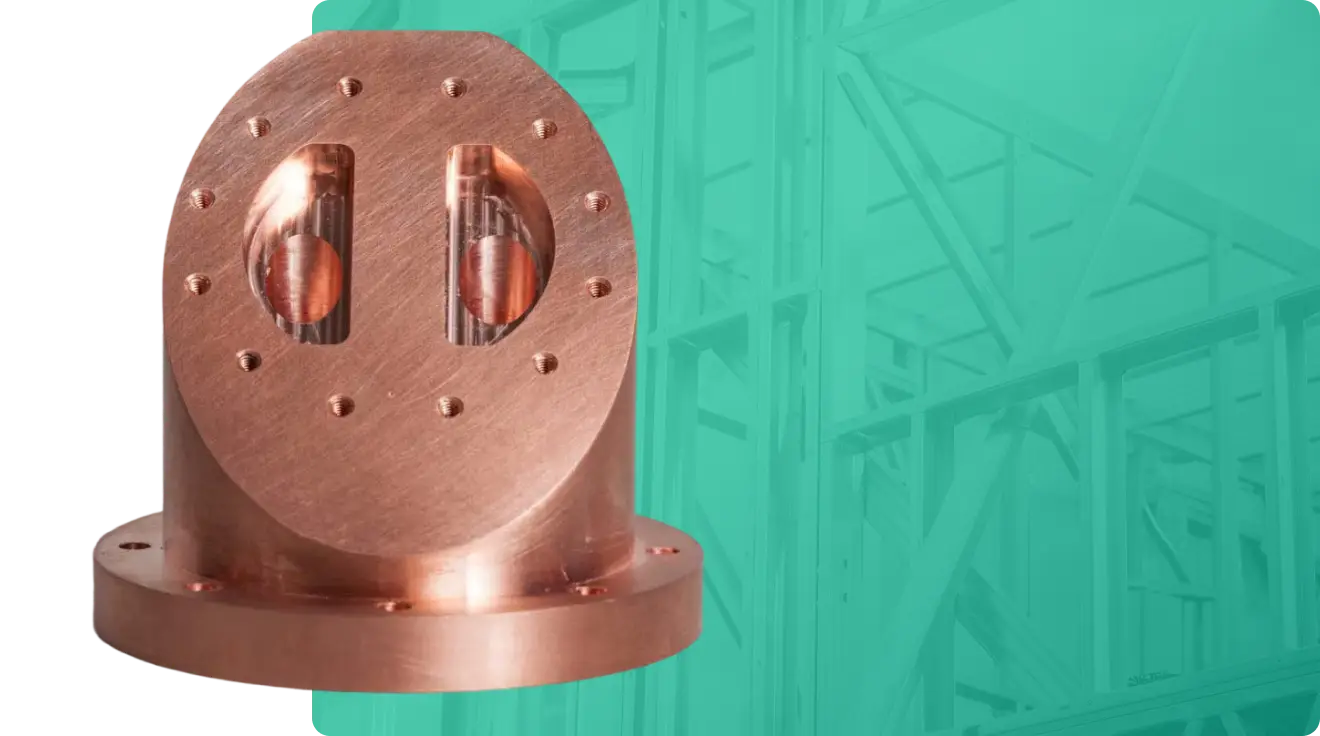

Material Finish

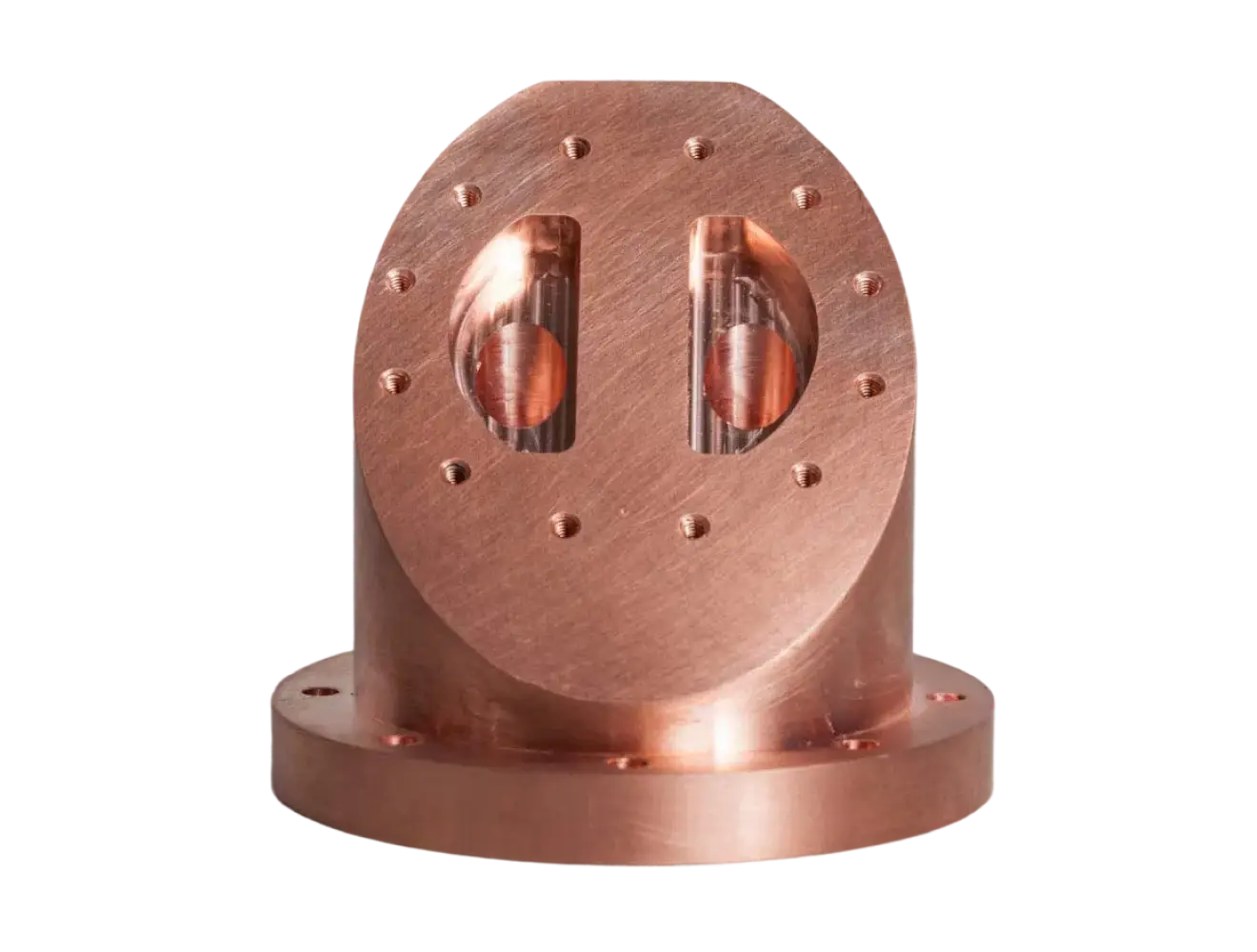

Copper has a shiny reddish-orange finish, which varies slightly based on the surface finish method. Copper can be media-blasted and polished to achieve many different cosmetic surface finishes.

Design Recommendations

Min Wall Thickness

0.5 mm

Min End Mill Size

0.8 mm (0.03 in)

Min Drill Size

0.5 mm (0.02 in)

Max Part Size

1200 x 500 x 152 mm [x,y,z] (mill)
152 x 394 mm [d,h] (lathe)

Undercuts

Square profile, full radius, dovetail profiles

Radii : Depth

Depth must not exceed 12x drill bit diameter.
For end mills, depth must not exceed 10x tool diameter.

Cost Saving Tip

To reduce costs, limit the number of part setups, the number of inspection dimensions or tight tolerances, and deep pockets with small radii.
