When it comes to building big (think aircraft components, wind turbine hubs, or massive industrial tooling), large CNC machining makes it possible to achieve tight tolerances at an impressive scale. These specialized machining centers are engineered to handle oversized parts that exceed the dimensional or weight limits of standard equipment, delivering nearly the same precision and repeatability expected from traditional CNC processes.
As industries demand increasingly complex, high-performance parts at larger sizes, large-format CNC machining has become an essential tool for modern manufacturing, enabling faster throughput, fewer setups, and reduced handling risks across aerospace, energy, transportation, and more.
Understanding Large CNC Machining

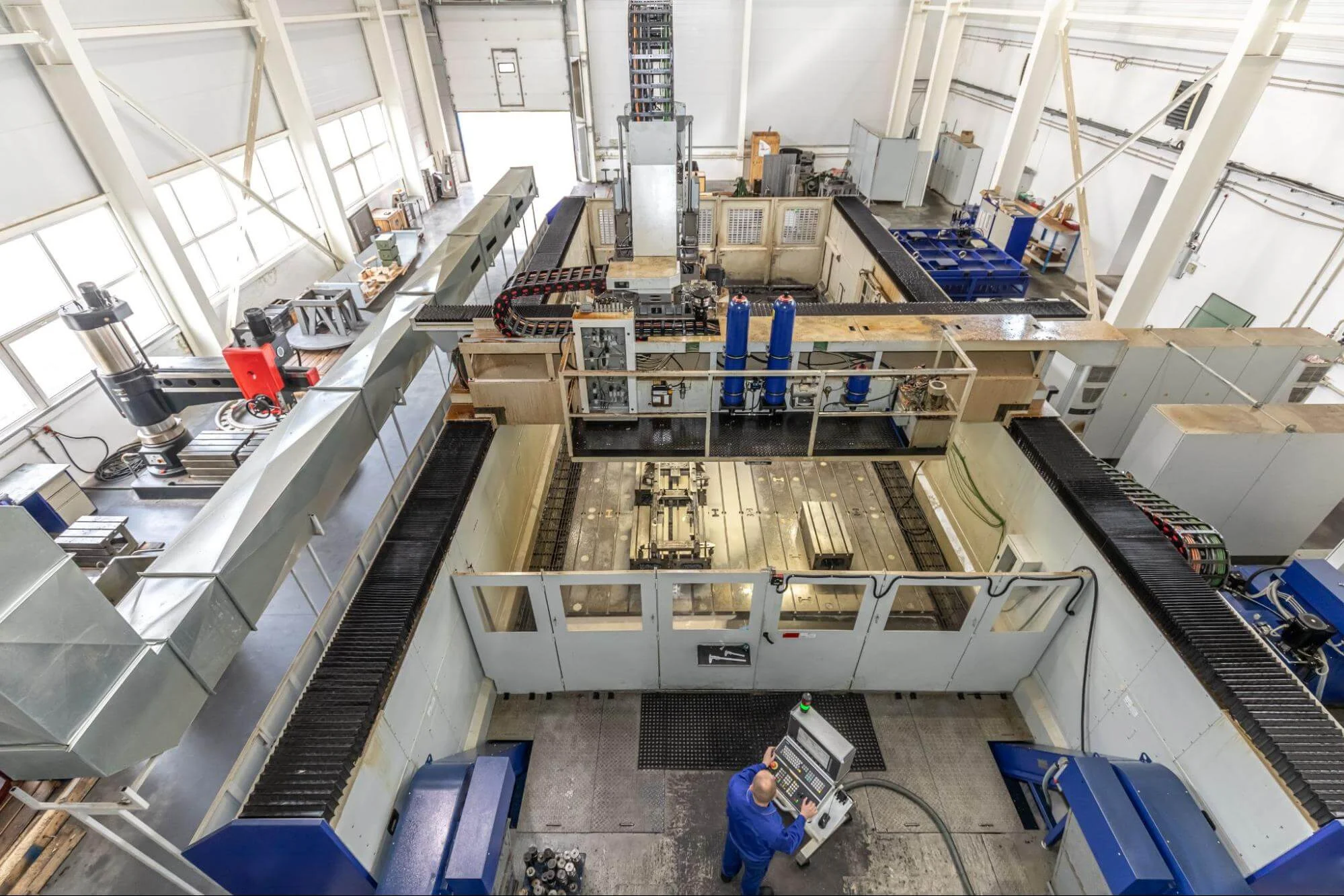

Large CNC machining is utilized to make very big and/or heavy parts, typically longer than one meter (just over 3 feet). These parts are too large for standard machines and require specialized equipment, such as gantry or horizontal boring mills, to handle their size and weight.
Compared to standard CNC machining, the machines used for large parts are much more robust, rigid, and advanced. These large machining centers often have travel ranges of over three meters along their main axis, and their robust structure and motors are built to handle the extra stress. Holding these large parts in place during machining also requires special strategies to prevent them from shifting or bending.
Here are some of the main types of large CNC machines used:

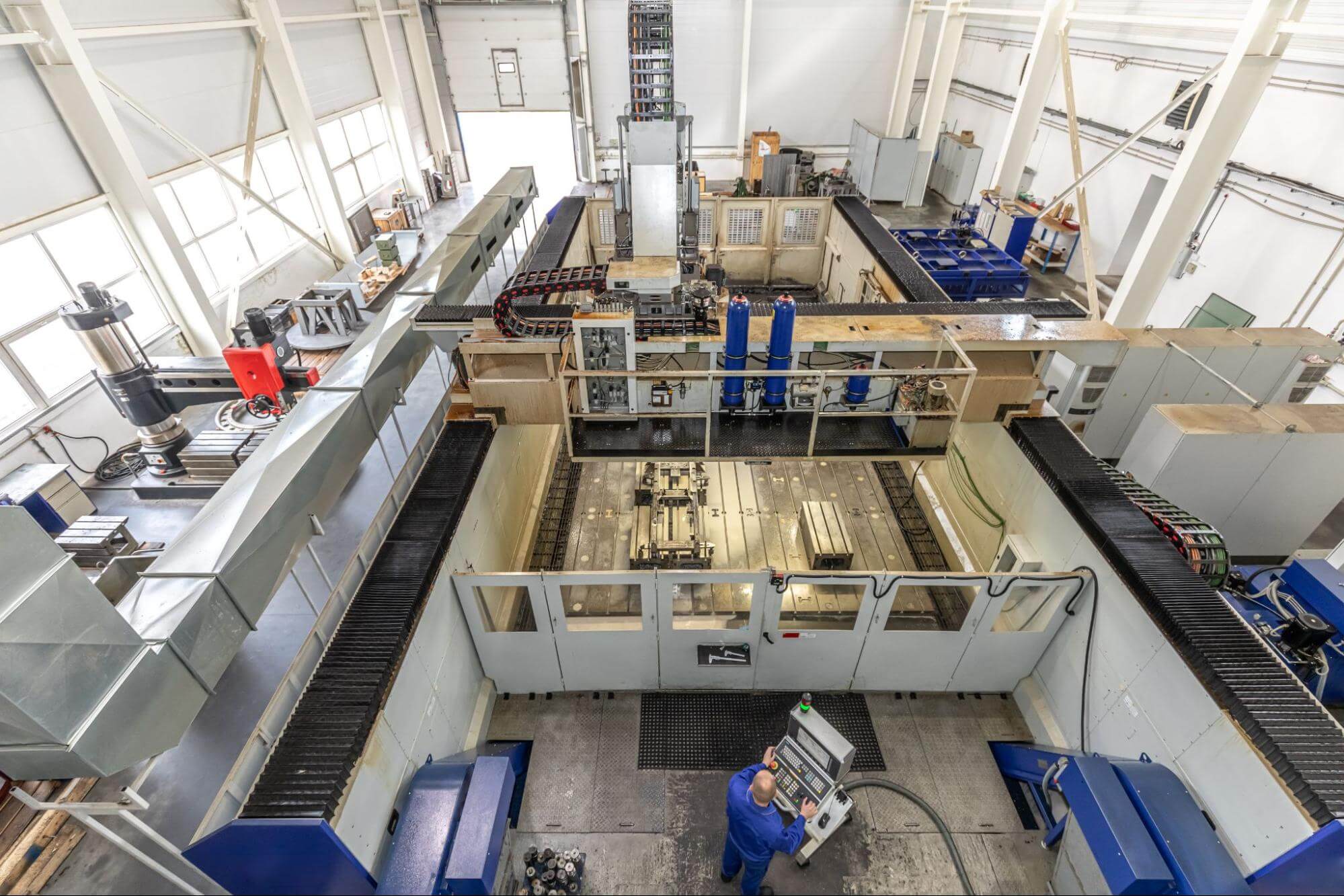

- Gantry Mills: Large bridge-style mills ideal for machining oversized plates, molds, and structural components with high precision.
- Horizontal Boring Mills: Designed for heavy, deep-pocket parts like gear housings and engine blocks, offering powerful spindle torque and reach.
- Horizontal Machining Centers: Great for multi-sided machining of large prismatic parts, with rotary tables and excellent chip evacuation.
- Vertical Bridge Mills: Suited for machining large, flat parts such as bases and frames with vertical spindle access and long travels.

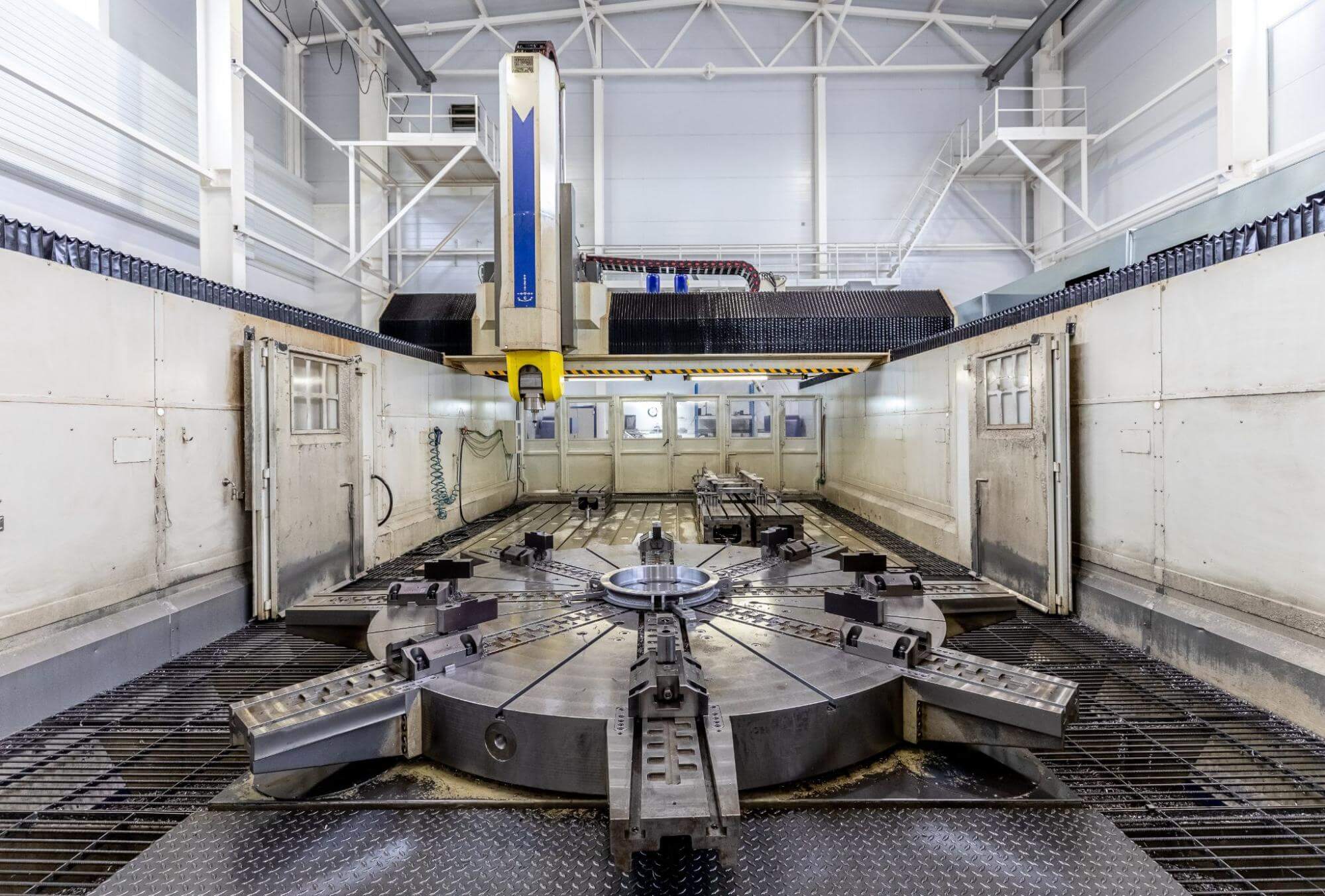

- Lathes (Heavy Duty or Vertical Turret): Used for turning large-diameter cylindrical parts like shafts, pipes, and turbine components.
- Floor Type Milling Machines: Ideal for extremely long or heavy components such as rails or aerospace tooling, with moving-column architecture.

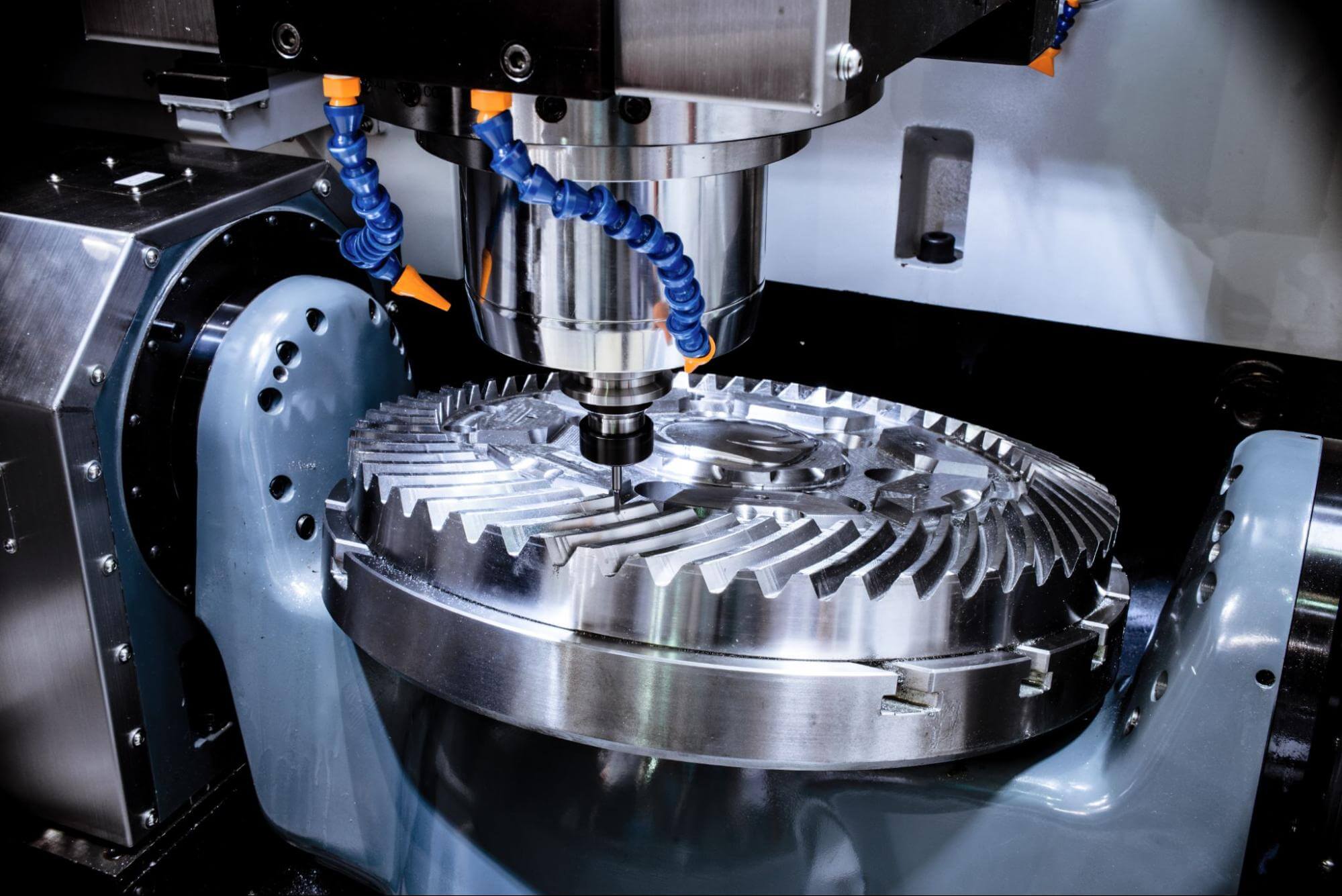

- 5-Axis (Large Format): Best for high-precision, complex geometries on large aerospace, automotive, or mold components.
Because of the demands of working with such sizeable raw materials, large CNC machining also relies on high-torque spindles, extra-strong axles, and specialized cutting tools. Together, these features make it possible to produce the large, precise components used in industries like aerospace, energy, and heavy equipment manufacturing.
Applications for Large-Format CNC Across Industries
The use of large CNC machining is used across various industries, including:
- Aerospace: Components such as wing spars and fuselage fittings for airplanes and UAVs are engineered with high-performance materials to optimize the strength-to-weight ratio, crucial for flight efficiency and safety.
- Energy: This sector depends on precision-cast parts, like oil & gas manifolds and wind turbine hubs, built for durability in extreme environments.
- Transportation: Advanced materials and fabrication methods enhance structural performance in rail bogie frames and prototype ship hulls.
- Automotive: Leverages rapid prototyping to accelerate testing and refinement of engine blocks and chassis, reducing lead times.
- Heavy equipment (including excavators and construction machinery): Relies on large, robust components, such as reinforced booms, to withstand high mechanical stress and demanding operational conditions.
Advantages of Large CNC Machining
BOM Consolidation
BOMs, or bills of materials, are often shorter with the utilization of larger parts. Large CNC machining of what would otherwise be assemblies with multiple components reduces the need for downstream assembly, minimizing the risk of human error and misalignment. This, in turn, allows for something known in the industry as BOM consolidation. The ability to machine larger parts reduces the need for additional part numbers on the BOM, reducing extra assembly labor and logistics.
Quality is also controlled on a higher level with fewer parts in a BOM. With fewer steps, the risk of defects is lowered, leading to consistent quality, reduced inspection, and a smoother path from machining to deployment, ensuring reliable, ready-to-use components for customers.
High-Precision for Large Components
Heavy-duty, large-part machining ensures superior dimensional accuracy by producing parts from a single workpiece. It maintains perfect alignment and minimizes cumulative tolerances that can stack up with assemblies.

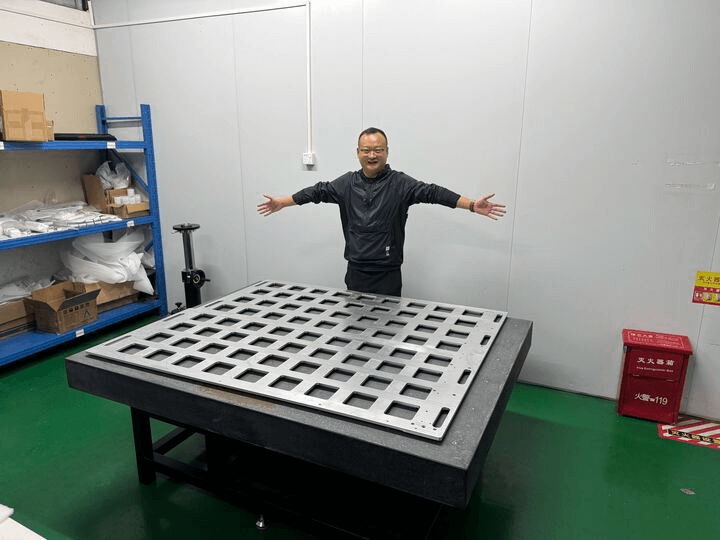

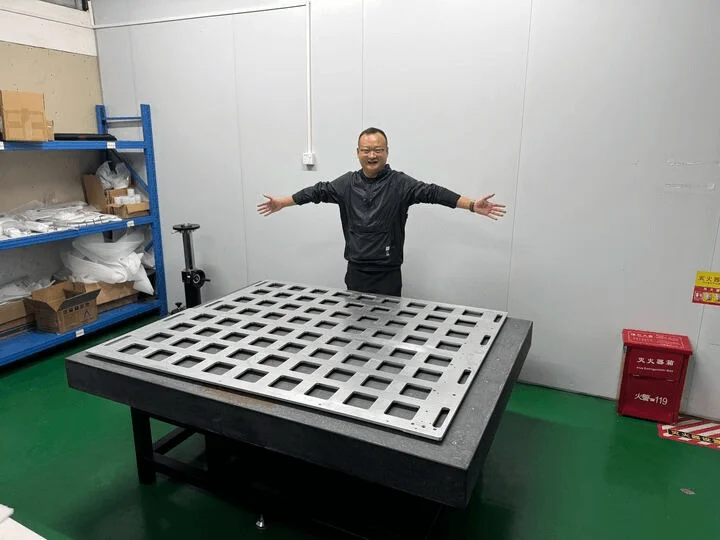

Of course, the tradeoff is that it’s more difficult to hold tight tolerances on larger parts. No worries, though—at Fictiv, we can produce parts larger than a human male with tolerances smaller than the width of a human hair.
Lead Time Reduction
Heavy-duty CNC machining can reduce lead times by enabling what would be multi-part assemblies to be produced in a single setup. It eliminates extra handling and additional steps, offering faster, more efficient production for time-sensitive industries. Imagine machining an entire airplane out of a single block of aluminum. While it’s not exactly practical for weight purposes and the airplane likely wouldn’t lift off the ground, it would be quite efficient for reducing assembly labor.
Improved Structural Integrity
Single-piece construction boosts structural integrity by eliminating fasteners, welds, and adhesive joints, ensuring gains in strength and rigidity over joining or fastening methods. A single component can have higher mechanical strength, fatigue life, and reliability than a sub-assembly of joined components, where the weakest link is often the fastener or weld joint. This is especially beneficial for critical components under high loads, vibration, or extreme conditions.
This benefit is commonly achieved in tandem with producing the lightest, most feasible option. For this reason, you will often see critical parts like the mounting structure for wind turbine blades, the propellers of an airplane, and even engine blocks for automobiles produced from a single component.
Challenges and Considerations for Large-Scale CNC
Tolerance Control Considerations
With large parts, you may have to open up tolerances over a larger area. Standard tolerances usually consider the length dimension and increase along with the distance. It’s important to use best practices with GD&T, especially with larger parts.
Fictiv can still hold tight tolerances on large parts. For instance, a 34-foot part can be held to a tolerance of 0.007 in (10x tighter than competitors).
Check out our GD&T 101 article to master geometric dimensioning and tolerances. Download the free eBook and learn how to call out and define critical features, control variation, and ensure machinability—especially for large, complex parts.
Machine & Tool Limitations
A key consideration is the balance between maximum feed rates and material removal rates (MRR). While increasing MRR improves productivity, it also elevates cutting forces, heat generation, and tool wear. This can exceed spindle power limits or lead to chatter and surface degradation. While these factors similarly limit the operations of standard CNC machines, the deeper cuts and larger tools often required for large CNC machining can still challenge the extra rigidity built into the machines, especially over longer spans.
Thermal Expansion & Tolerance Control
As part dimensions increase, the influence of thermal expansion becomes more critical. To mitigate this, shops implement temperature control through high-pressure coolant systems, spindle thermal compensation, and climate-controlled machining environments. Advanced CNC systems may incorporate real-time thermal drift correction to maintain dimensional stability during long machining cycles or interrupted operations.
Logistics of Transporting Large Components

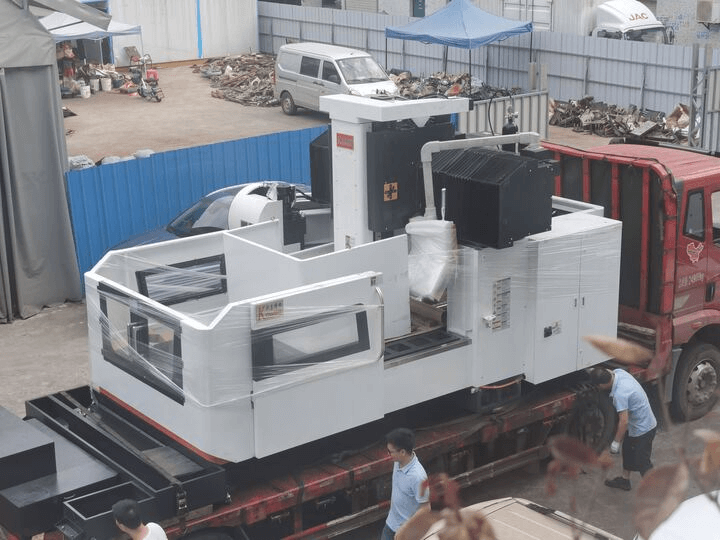

Beyond machining, transporting large parts introduces engineering and logistical challenges. Components often exceed standard freight dimensions, requiring specialized crating, shock-resistant packaging, and route planning (only necessary for extremely large items) to navigate infrastructure limitations like bridges, tunnels, or weight-restricted roads.
Inspection Equipment
Floor-mounted Coordinate Measuring Machines (CMMs), portable laser trackers, and 3D scanning technologies are commonly employed to capture full-field data with high precision. These systems often integrate with CAD models for real-time deviation analysis.
High-precision inspection services utilize digital metrology to validate geometries, GD&T compliance, and surface finish on oversized components.
Design Tips for Large CNC Machining
When designing large CNC machining components, below are some design tips to consider:
- Prioritize manufacturability by minimizing deep cavities and undercuts, which increase cycle time and can lead to tool deflection, chatter, and complex fixturing.
- Select materials that optimize the trade-off between machinability and mechanical performance. For example, 6061-T6 aluminum is easily machined at moderate speeds, while 7075-T6 requires slower feeds but offers superior yield strength.
- Validate geometry, toolpaths, and fixturing early during the CAD and DFM phase to avoid late-stage revisions.
- Specify tolerances aligned with machine capabilities. For example, ±0.1 mm over 1 m is achievable on most gantry mills, whereas tighter tolerances like ±0.01–0.05 mm should be reserved for spans under 100 mm, where thermal stability and axis accuracy are more reliable.
Other aspects to consider when designing for large CNC machining are shown in the table below:
Standard CNC vs. Large CNC Machining
| Aspect | Standard CNC Machining | Large CNC Machining |
| Work Envelope | Typically up to ~2 m travel; parts under ~1 ton | Travel ranges >3–5 m; parts >1 ton |
| Machine Types | Vertical/horizontal mills, lathes, 3-axis and entry-level 5-axis | Gantry mills, horizontal boring mills, heavy-duty 5-axis |
| Material Handling | Hand or forklifts for moderate loads | High-capacity gantry cranes, modular transport vehicles |
| Spindle & Axes | Standard-torque spindles, conventional drives | High-torque spindles and reinforced axes for heavy cutting forces |
| Cutting Tools | End mills, drills, and taps sized for moderate cuts | Extra-long tools, indexable inserts, specialized roughing cutters |
| Lead Time & Setup | Short setups; fast changeovers | Longer setup and fixture design; fewer total setups but more planning |
| Cost Structure | Lower per-part tooling and setup costs | Higher fixturing and equipment investment, offset by fewer fixtures overall |
| Typical Applications | Small machined components, precision prototypes | Aerospace spars, wind-turbine hubs, rail bogie frames, ship hull sections |
| Inspection Methods | Bench-top CMMs, vision systems | Floor-mounted CMMs, portable laser trackers, large-volume 3D scanning |
Considerations for Selecting a Large CNC Machining Partner
Evaluate Capabilities and Equipment
Confirm that their facility footprint and equipment capacity align with your needs, paying close attention to whether the machine travel envelopes can accommodate the dimensions of your parts. Also, ensure that the provider holds all relevant certifications, signaling adherence to industry standards and quality assurance practices.
Assess Experience With Similar Projects
Assess the provider’s experience by evaluating how well their expertise matches your requirements. This can be done by reviewing prior projects or determining whether they have technical familiarity with similar applications. Visiting the facility can offer deeper insight into its capabilities, allowing you to inspect the condition of equipment, examine tool libraries, and get a sense of the overall technical environment.
Fictiv has manufactured over 35 million parts, with the majority being CNC. We’re able to machine parts up to 34 feet long—over 5x longer than the competition.
Consider In-House Logistics Infrastructure
Facilities equipped with overhead or gantry cranes and heavy-duty forklifts are better prepared to handle large or complex components efficiently and safely, reducing the risk of delays or damage during the production process.
Meeting Industrial Demands With Large CNC Machining
In large CNC machining, optimizing for manufacturability, selecting the right materials, early collaboration, and rapid prototyping are all key factors in achieving efficient and cost-effective production of oversized components. Designing for manufacturability (for example, minimizing deep cavities or undercuts, considering material machinability, etc.) helps reduce tooling adjustments and cycle times.
Early collaboration between design teams and CNC machinists is essential to align geometry, cutting strategies, and fixturing with machine capabilities, preventing costly reworks. Tolerance considerations are critical, especially for large parts susceptible to thermal expansion and distortion, to ensure parts meet specifications.
Addressing these factors early reduces lead times, enhances precision, and lowers costs while producing durable components for industries like aerospace, energy, and transportation.
Fictiv for Large CNC Parts
Got a big idea? We’ve got the tools to make it happen. Fictiv offers CNC machining for parts up to 34 feet long at tight tolerances—with personalized services including quotes based on 2D drawings, DFM feedback, guided materials selection, and global supply chain management built to simplify sourcing at every stage.
Ready to bring your next large-scale project to life? Get started with an instant quote.
